Delta4 Insight

Delta4 Insight* verifies the accuracy of treatment plans

You have a treatment plan. Now take the vital step of verifying that the calculations your TPS made are accurate. Delta4 Insight is an independent, high-standard Monte Carlo-based Secondary Dose Calculation software that ensures that the dose you’ve planned for your patient is correct in all clinical situations.

Delta4 Insight also gives you the option of evaluating treatment plans according to specific objectives. In this way, you can ensure that both the plan quality and accuracy are up to standard, while also fulfilling regulatory requirements and giving access to reimbursement.

*Currently available together with Delta4 Phantom+.
Not available for all markets, contact ScandiDos for more information.

Medical Physicist in front of a screen with Delta4 Insight software

Treatment Plan Verification

Delta4 Insight is an independent secondary 3D dose calculation software that utilizes a Monte Carlo dose engine.

Extremely intuitive, a single export to Delta4 Insight from the TPS triggers an automatic 3D dose calculation and plan evaluation, generating a pass/fail indication for each OAR and target objective. This allows you to verify the accuracy and quality of your plans, without adding to your clinic’s workload.

Delta4 Insight is seamlessly integrated with the Delta4 software, meaning it runs on the same user-friendly software platform as the entire Delta4 Family of products. This gives you the advantage of being able to efficiently attain QA for the entire treatment chain—from prescription to final fraction.

Fully automated Process

Modifiable accuracy and calculation time

Flexible commissioning, use golden data or your own

Highly adaptable

Integrated with the Delta4 Software

Want to learn more?

Delta4 Insight

Fast and accurate

Peak precision

Achieves an accuracy of 1%/1mm (compared to measurements and the EGSnrc general purpose Monte Carlo algorithm).

Easy workflow

The Delta4 Insight software comes with a full suite of intuitive analysis tools, allowing you to evaluate calculation results quickly and easily.

Fast calculation

With calculation times in the order of minutes, you can be confident that Delta4 Insight will never disrupt your clinic’s workflow.

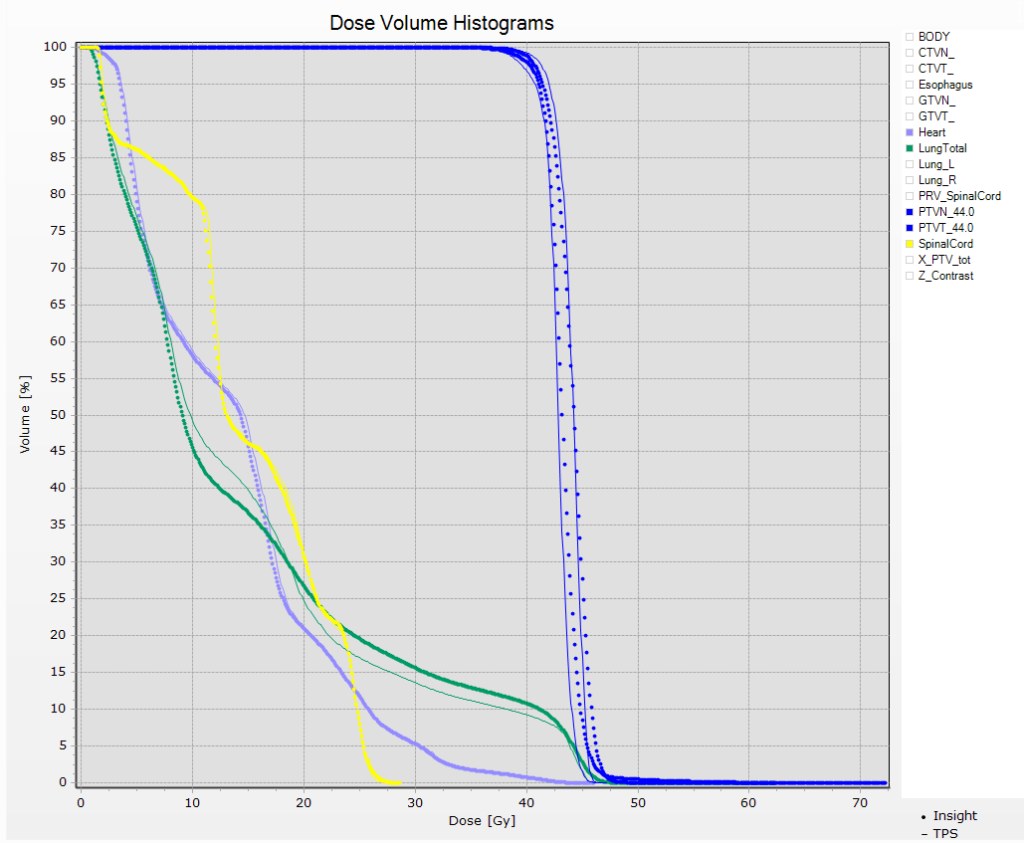

Dose volume histogram in Delta4 Insight software

Delta4 Insight

Automated and integrated

Automated

All you have to do is to export your finished treatment plan. Delta4 Insight automatically imports the treatment plans, performs the calculation, and evaluates the results.

Integrated

Delta4 Insight shares the same database and Delta4 software with the entire family of Delta4 products, allowing you to keep all your patient QA in one place.

Specification

Delta4 Insight

Compatibility

Data import from (from TPS) DICOM RT
Radiation Device, MLC Varian TrueBeam® with Millennium® MLC & HD MLC Elekta Versa® HD with Agility® MLC & Elekta Synergy
Modalities MV Photons, Flattened and FFF beams
Treatment Techniques IMRT, VMAT, RapidArc, Conformal 3D

Analysis Tool

DVH Display of DVH for each structure (both TPS and Delta4 Insight)

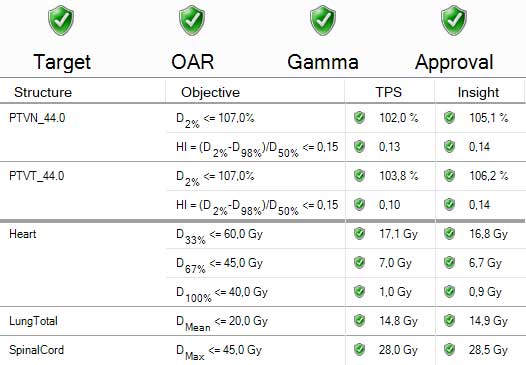

OAR Objectives OAR objectives based on RTOG protocols. Automatic check if OAR objectives are met. Pass/Fail indication for each OAR objective.
Target Coverage Customizable target objectives like homogeneity and coverage. Automatic check if target objectives are met. Pass/Fail indication for each target objective.
Gamma Index Gamma dose distribution comparison: Delta4 Insight versus TPS dose. Pass/Fail indication for gamma comparison.
Protocols RTOG, ICRU

Recommended computer specifications

Server for dose engine Windows 2019 Server OS, .NET Framework v 4.7. Intel Xeon W with at least 18 cores/36 threads/2.3 GHZ, 64GB RAM. 500GB free disc space
